Armatury S33 Gate Valves for low and medium pressure

Armatury S33 Gate valves for low and medium pressure shutoff applications. The valve is an outside-screw-and-yoke, with flexible or solid wedge, rising or non-rising stem. It is delivered with a handwheel, a manual bevel gear, an electric actuator or bare stem ready for connection to an actuator.

TA-Luft design. Material, body: Carbon steel, chrome moly steel, low-temp carbon steel, stainless steel.
Connections:  flange, weld. DN 50-600, PN16-100. Max temp = 595 °C

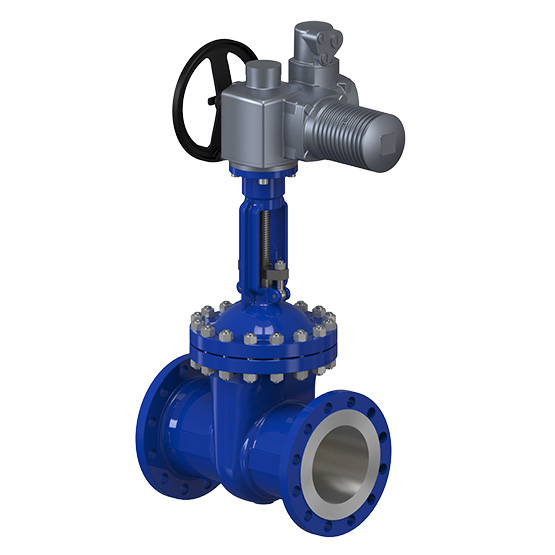

S33.1
Yoked design, cast body with flexible wedge
S33.2
Yoked design, cast body with solid wedge

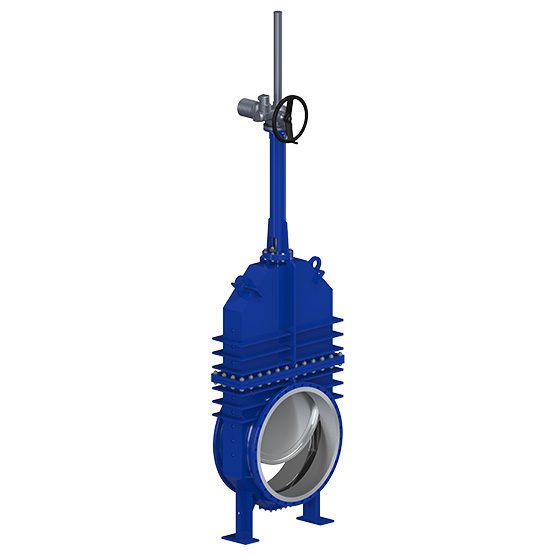

S33.4
Yoked design, fabricated body with solid wedge

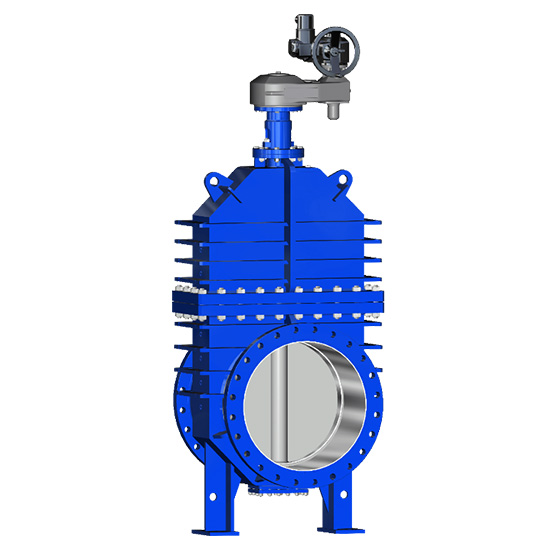

S33.5
Bonnet design, fully welded with non-rising stem
S33.6
Through-conduit design, welded, cylinder type / flat type

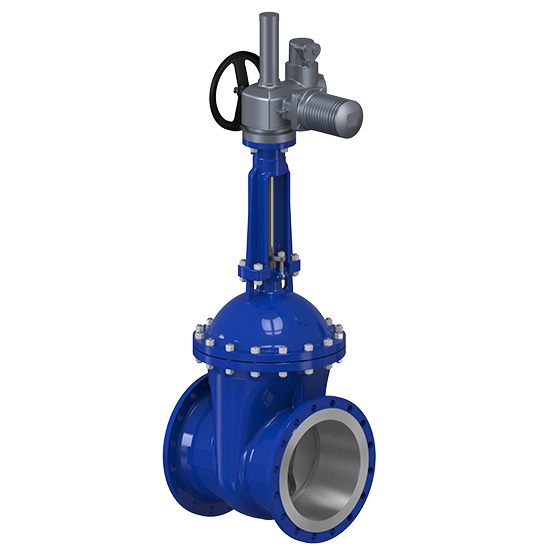

S33.C
Control gate valves
